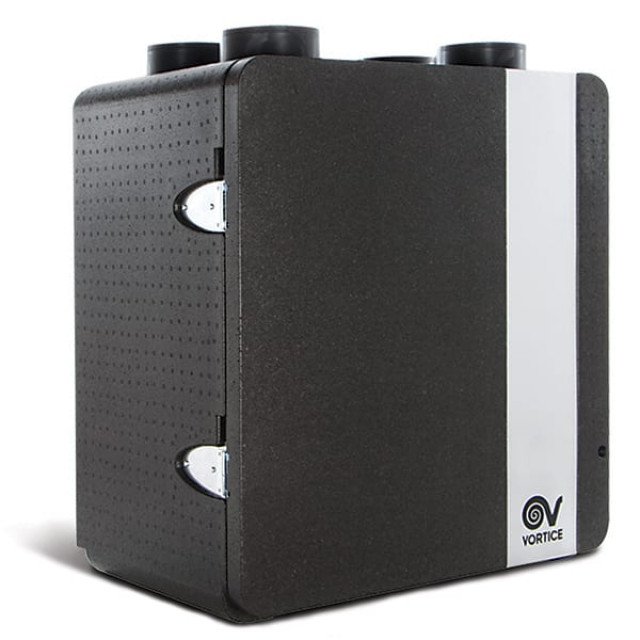

Vortice HR Series Heat Recovery Unit

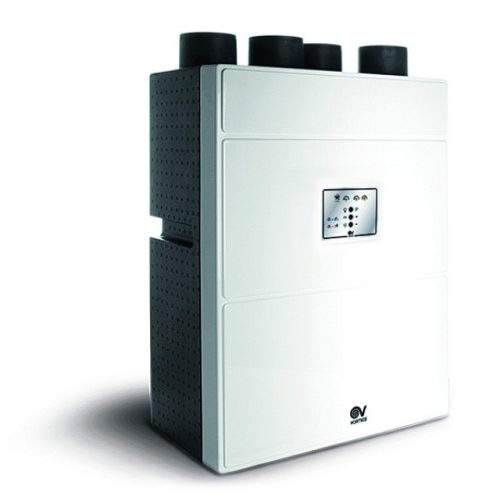

Features Plastic (PPE) enclosure Duct connection ports of nominal diameter 150 mm. Two Vortice EC (brushless) motors with shaft turning in ball bearings, each coupled to a backward curved centrifugal impeller; 3 speeds, selectable independently at the moment of installation. Air flow can be set between 50 m 3 /h and 350 m 3 /h. A very high-efficiency counter-flow heat exchanger in PS resin. Automatic, filtered 100% by-pass Vortice-integrated frost protection. Two F5 filters (optional F7 filter on intake duct) Electronic control with LCD display Brackets for wall mounting included Models Code V~50 Hz W max A max Max Airflow (m3/hr) Max Airflow (l/s) Max Pressure (Pa) dBA @3m VORT HR 350 AVEL EXPORT ALV11396 240 165 1.4 350 100 880 39.7 HR300 NETI ALV10935 240 50 190 83 300 735 28 Frequently Asked Questions How does a heat transfer kit work? A heat transfer kit uses a small fan to draw warm air from a room with a good heat source — typically a room with a wood fire, slow combustion stove or reverse-cycle unit — and duct it to cooler rooms elsewhere in the home. It requires no new heating system; just a small ceiling penetration and the kit's ducting and fan assembly. Can a heat transfer kit be used for cooling as well as heating? Yes. In summer the same kit transfers cool air from an air-conditioned room to adjacent spaces — extending your cooling without running a second system. Allvent kits available through Airdry are designed to handle both heating and cooling transfer year-round. How many rooms can a heat transfer kit serve? Single-room kits (1-room transfer) serve one destination room. Multi-room Allvent kits distribute heat to 2–4 rooms using a central fan unit and multiple ducts. The correct kit depends on room distances and your home's layout — contact us for a recommendation. Product information sourced from Allvent — allvent.com.au
